AB13102 - ABSIMA 1/8 Monster Truck "ASSASSIN Gen2.0" 4S RTR

Brand: ABSIMA
Monster Truck 1/8-1/10
398,00€



AB13102 - ABSIMA 1/8 Monster Truck "ASSASSIN Gen2.0" 4S RTR

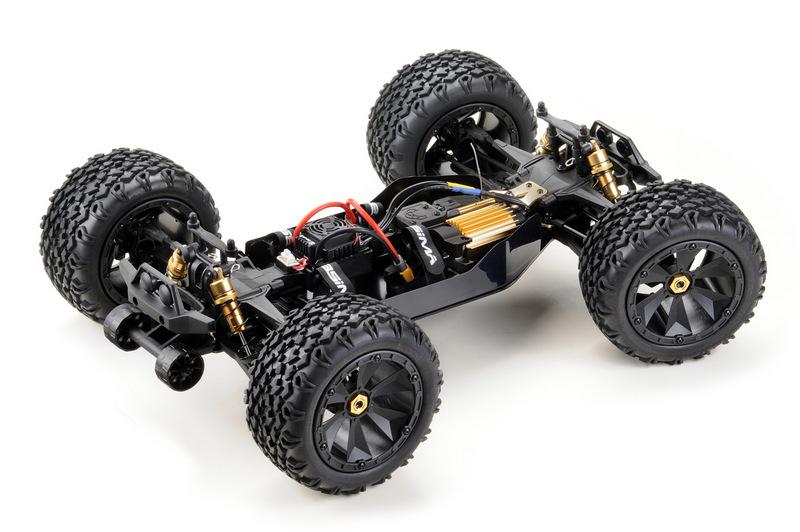

CHASSIS CONCEPT:
The chassis is fully tuneable with adjustable ride height, tunable shocks, adjustable camber, adjustable toe angle, and multiple shock mounting positions.
Durable aluminum parts like the 3mm laser-engraved chassis plate, golden colored wheel hubs wishbone brackets, brace- and damper parts, ensure a long chassis life and a premium design.
DRIVE CONCEPT:
The drive concept - powered by HOBBYWING is top in it´s class for performance and reliability and accelerate the vehicle up to 70 km/h. The cooling fan on the 120A speed controller keeps temperatures consistent during full throttle 4S action. The 2300KV motor delivers insane power to the wheels.
Parameters like brake force, drag brake, start mode (punch), running mode and LiPo cut-off you could change the settings through a set button or a programming box (separately available). T-plug connectors provide a reliable connection between your speedo and your choosen battery packs. So much power want to be supplied! We advise to quality batteries with high capacity and a C-rate of at least 45C.

5.0mm CVD shafts front and rear, metal differential gears and 4.5mm center dogbones are used for power transmission.

"Easy-Use" motor mount concept for a quick and easy motor removal. Just open 2 screws and slide it out!


STEERING CONCEPT:
Our proven ABSIMA "CR2SV2" 2.4 GHz radio system guarantees a fast and reliable connection to your vehicle. The 9kg metal gear servo with aluminum horn and durable high-performance tires ensure proper steering on any surface.
Get your ABSIMA Assassin Monster Truck and experience a whole new level of quality and performance!


  • Extremly durable composite plastic parts

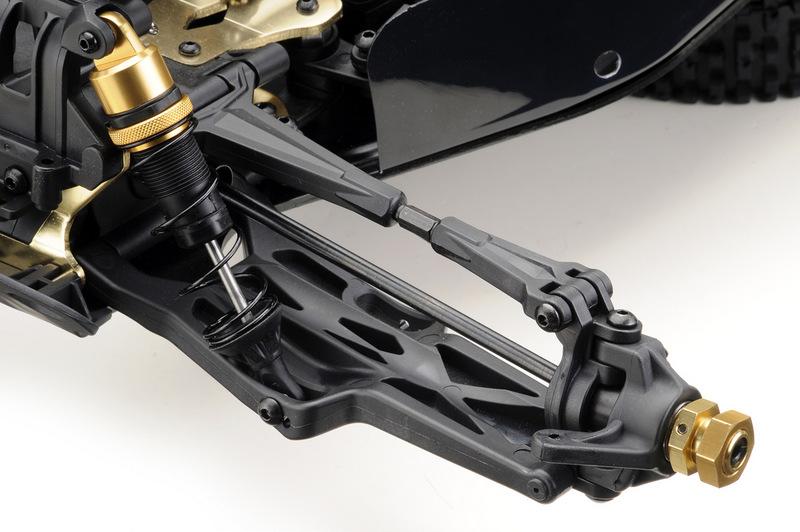

  • Monocoque suspension arms
  • Fully adjustable chassis concept
  • Hardened steel motor pinion
  • Extremly durable plastic spur gear
  • Adjustable oil-filled 16mm Big Bore shocks
  • 3 full-metal geared differentials
  • 2-piece sliding motor mount concept for easy adjustment and instalation
  • Massive 5.0mm CVD axles - front & rear
  • 4.5mm middle steel drive shafts - front & rear
  • Race compound low profile tires
  • "Saddle-Pack" battery concept for a perfect weight distribution
  • 3mm black aluminum chassis plate with ABSIMA laser engravings
  • Aluminum servo arm
  • Seperate water- and dust-proof receiver box
  • Completely ball bearing mounted
  • Chassis sideguards for dirt protection
  • All aluminum parts anodized in gold
  • Aluminum 17mm wheel hex drives
  • Steel turnbuckles all-over
  • Adjustable camber, toe angle & ride height
  • SPEED UP TO 70 KM/H


  • Scale: 1:8
  • Drive type: 4WD
  • Surface: Off-road
  • Wheelbase: 375mm
  • Chassis clearance: 45mm
  • Tire width: 82mm
  • Tire Ø: 165mm
  • Motor transmission: Pinion: 13T / Spur gear: 49T
  • Pinion module: 1.0
  • Length: 555mm
  • Width: 445mm
  • Height: 205mm
  • Weight: 4430g (w/o batteries)Scale: 1:8
    Drive type: 4WD
    Surface: Off-road
    Wheelbase: 375mm
    Chassis clearance: 45mm
    Tire width: 82mm
    Tire Ø: 165mm
    Motor transmission: Pinion: 13T / Spur gear: 49T
    Pinion module: 1.0
    Length: 555mm
    Width: 445mm
    Height: 205mm
    Weight: 4430g (w/o batteries)
